Aprilia RS 125 side and rear seat fairing panel removal to access CDI , PV controller , Indicator relay & regulator rectifier

Aprilia RS125 workshop manual for sale Ebay UK

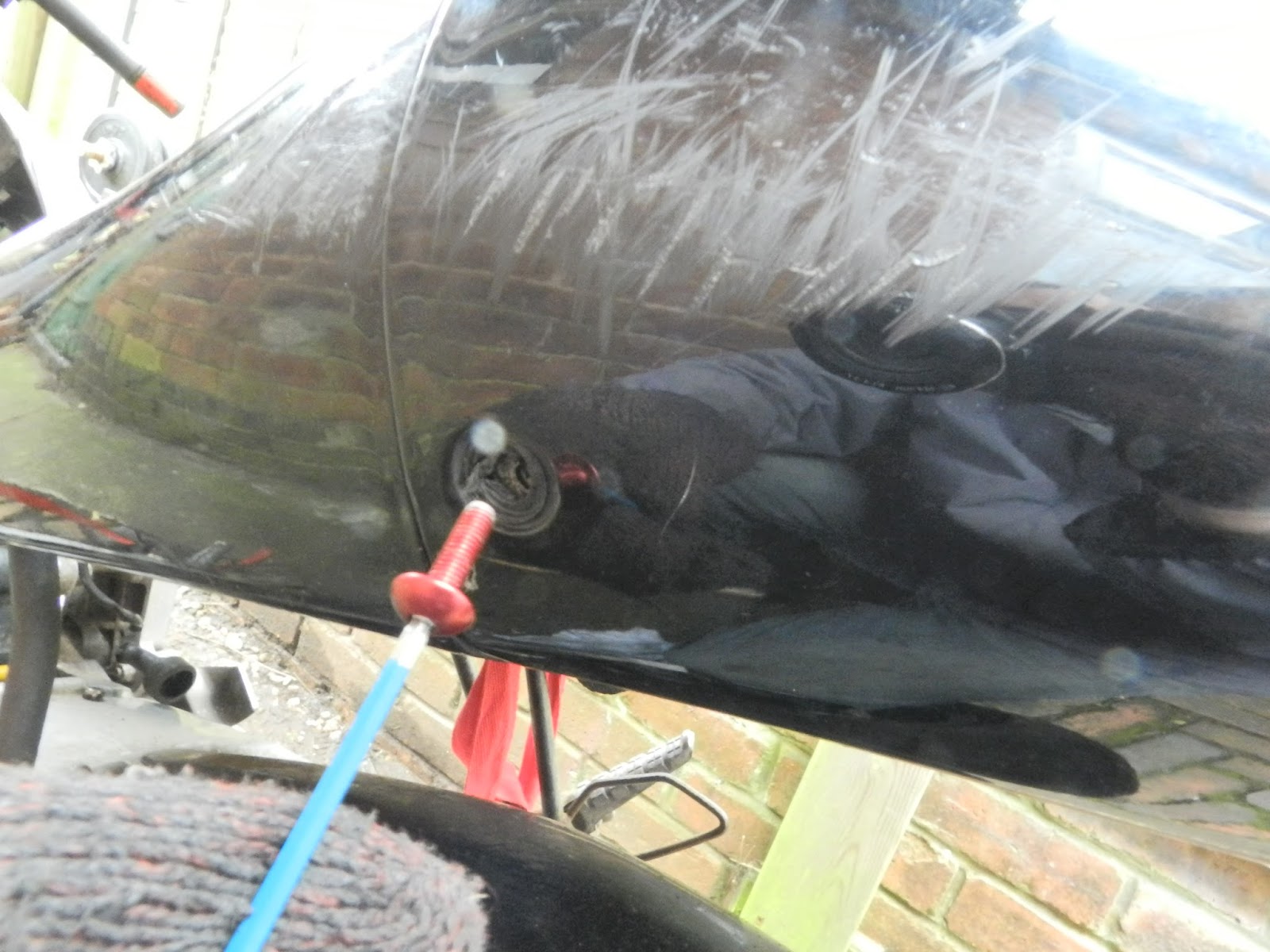

Undo the screws at front of side panel

then remove rear panel screws

same the other side

side panels are now free

you need to undo these allen headed bolts too

both sides .

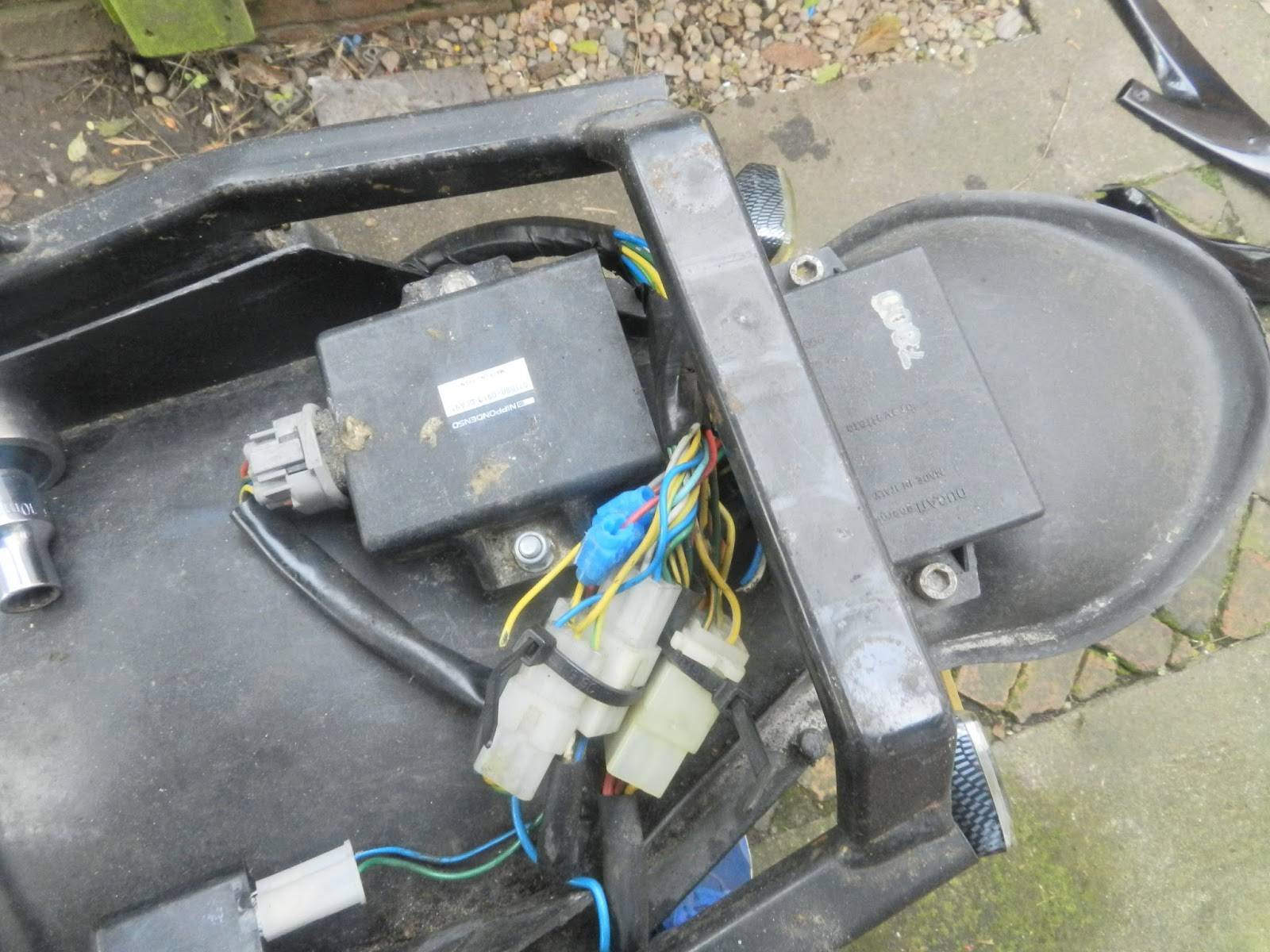

under the seat is CDI PV controller

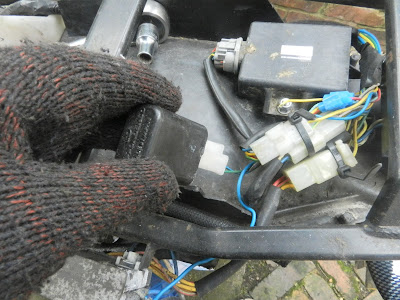

flasher unit , regulator

last 2 screws are under the seat panel

it will now pull of f

giving full access to under seat components
