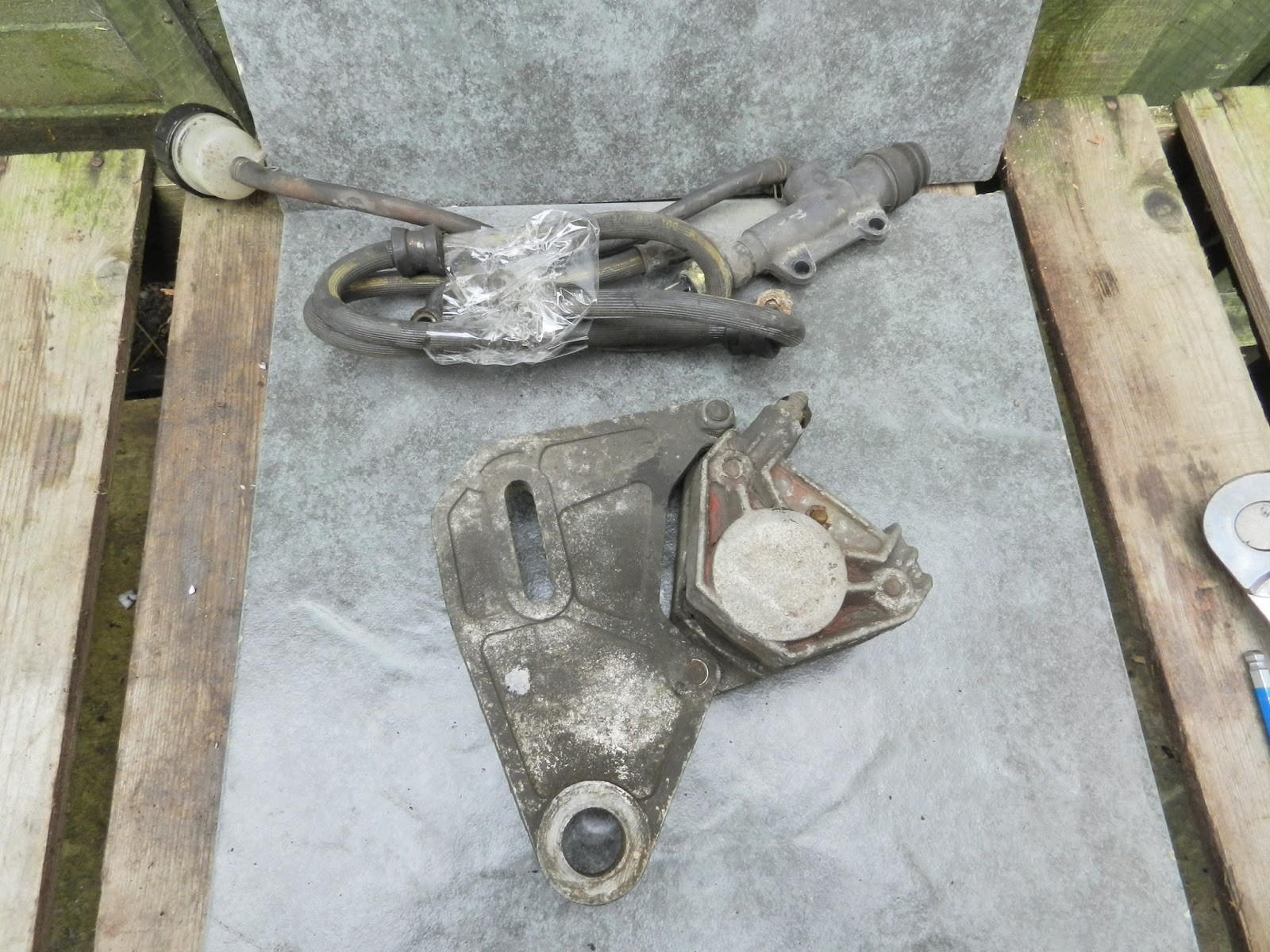

Aprilia RS 125 Rear Brake Disassembly Strip Down - Cylinder - Caliper - pads and rear brake light switch

Aprilia RS 125 Rear Brake Disassembly Strip Down - Cylinder - Caliper



USA please check out here for Aprilia RS 125 parts








start by draining the fluid pot




dont lose expanding seal



undo 8mm pot fastener

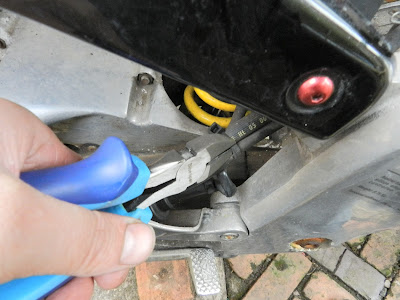

clip cable tie for brake hose cables etc



now undo 8mm bolts for cylinder may need 10mm to hold rear nut




you can change you brake light switch here


the brake hose is held to swing arm via 2 8mm bolts




undo caliper banjo bolt here to save struggle later


2nd 8mm hose bolt is here you nned to undo the foot peg too
only loose so hose slips by


pull up through here




uno caliper mount bolts




brake pad pin circlip fastener


pull pin out and pads drop free dont lose anti squeal spring
