Testing a starter relay is quite easy.

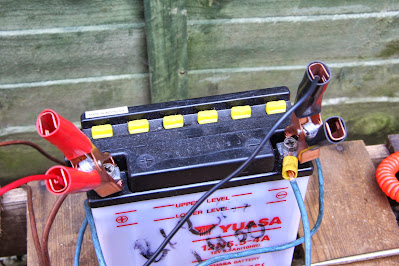

basic equipment needed is 12v battery with 2 x wire i use crocodile clips .

you can also use a small test bulb as well .

Aprilia RS125 starter relay testing , how to  rs 125 .

or you can invest in good and safer tool like the 12v powerprobe and
snap of test light probe i bought and are excellent .


Aprilia RS125 starter relay testing , how to  rs 125 .

i always have a fully charged 12cv battery with crocodiles knocking about it saves loads of hassle


Aprilia RS125 starter relay testing , how to  rs 125 .

The relay , the small terminals are what connect to your starter button and
carry a lot less current .

the larger terminals are connected direct from battery to the starter motor so
need larger wires to carry the massive starting currents .


Aprilia RS125 starter relay testing , how to  rs 125 .

Aprilia RS125 starter relay testing , how to  rs 125 .

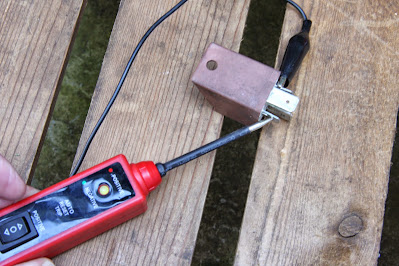

Im using the powerprobe here as its safer but you can just as easily
connect the 12v negative to one side and tap the positive on the other side

you should hear a click as you touch the positive and remove it .


Aprilia RS125 starter relay testing , how to  rs 125 .

You can go a step further and add a test light to it and confirm current it
going throught the secondary circuit .




to test with a lamp you need to connect one end on test light curcuit to
battery positive and the to one of the relays larger terminals
and then use another cable from second larger terminal to negative of battery

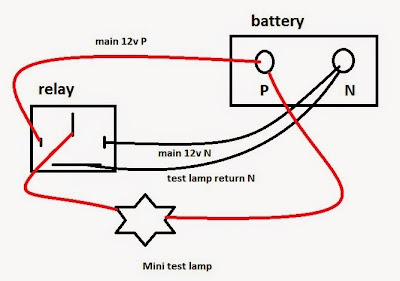

ill do basic circuit diagrams at bottom of page .

Aprilia RS125 starter relay testing , how to  rs 125 .

Aprilia RS125 starter relay testing , how to  rs 125 .


Now when you put power to the smaller terminals it should click but also
the light should flash on and off as you tap power .



OK not the best , never have been very good with Windows Paint
