Aprilia RS 125 Kill switch start on - off switch testing




You can buy Aprilia RS 125 ignition parts from Ebay UK here

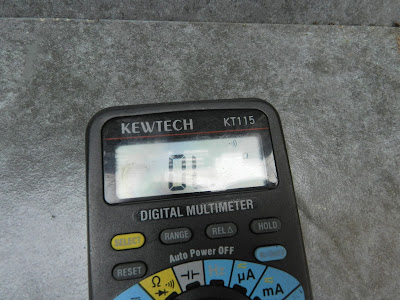

Set your multimeter to continuity and buzzer mode

Aprilia RS 125 Kill switch start on - off switch testing

Aprilia RS 125 Kill switch start on - off switch testing



Aprilia RS 125 Kill switch start on - off switch testing

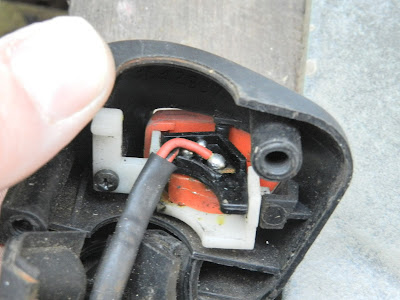

Inside the switch are the 2 wires for the kill switch

one red / black and the other

Aprilia RS 125 Kill switch start on - off switch testing

follow these out

Aprilia RS 125 Kill switch start on - off switch testing

and down to connector

Aprilia RS 125 Kill switch start on - off switch testing

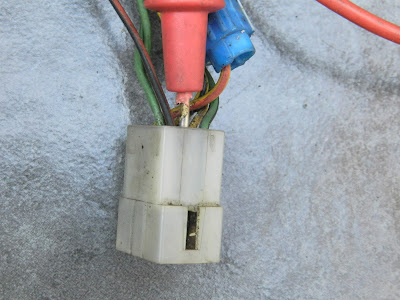

red/black in the connector connect one test lead here

Aprilia RS 125 Kill switch start on - off switch testing

the red lead is not in connector but seperate connect other test lead to here

Aprilia RS 125 Kill switch start on - off switch testing

operate the kill switch

Aprilia RS 125 Kill switch start on - off switch testing

Aprilia RS 125 Kill switch start on - off switch testing
]

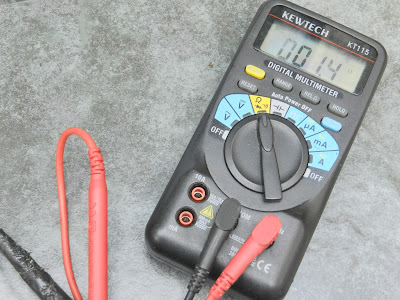

you should get very low ohms reading and buzzer sound if switch is good

Aprilia RS 125 Kill switch start on - off switch testing
